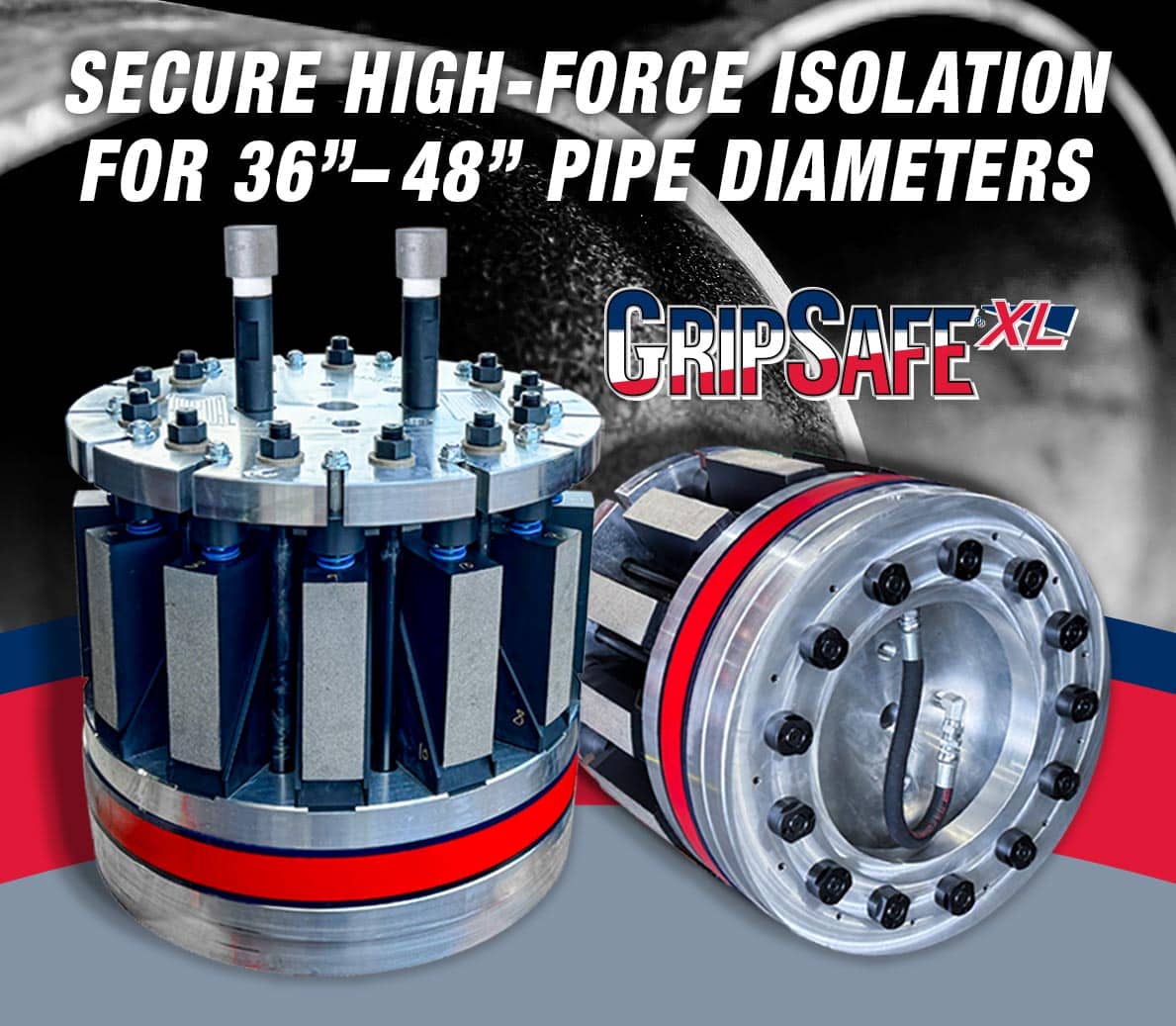

GripSafe® XL Large Bore Isolation & Test Plug, 36" to 48"
Hydrostatic and pneumatic testing for 36", 42", and 48" pipe without welded end caps. Holds pressure up to the pipe’s yield point. Patented self-energizing wedges grip harder as pressure rises, one plug covers a range of wall thicknesses, and a crew of two can install it in about 15 minutes. Available to rent or buy. See specifications ›
Get a Quote or Order
Send us these details and we'll respond the same business day.
- GripSafe® XL plug
- Pipe size and wall thickness
- Test type (hydrostatic or pneumatic) and pressure
- Quantity needed
- Rental or purchase
- Date needed
| Specification | Details |
|---|---|
| Sizes | 36" • 42" • 48" (larger and custom on request) |
| Wall Thickness | .375" – 2.250" (four ranges per size) |
| Pressure Capability | Up to the pipe’s yield point (hydrostatic and pneumatic) |
| Back Pressure Rating | 3,000 psi (36") • 2,500 psi (42") • 2,000 psi (48") |
| Test Types | Hydrostatic • Pneumatic |
| Torque Range | 250 – 600 ft-lbs |
| Ports | Fill port 2" MNPT • Back pressure vent 1" MNPT |
| Length | 38.50" overall • 31.63" energized body |
| Approx. Weight | 2,700 – 5,450 lbs |
| Installation | About 15 minutes (typical, crew of 1 to 2) |
| Availability | Rent • Purchase |

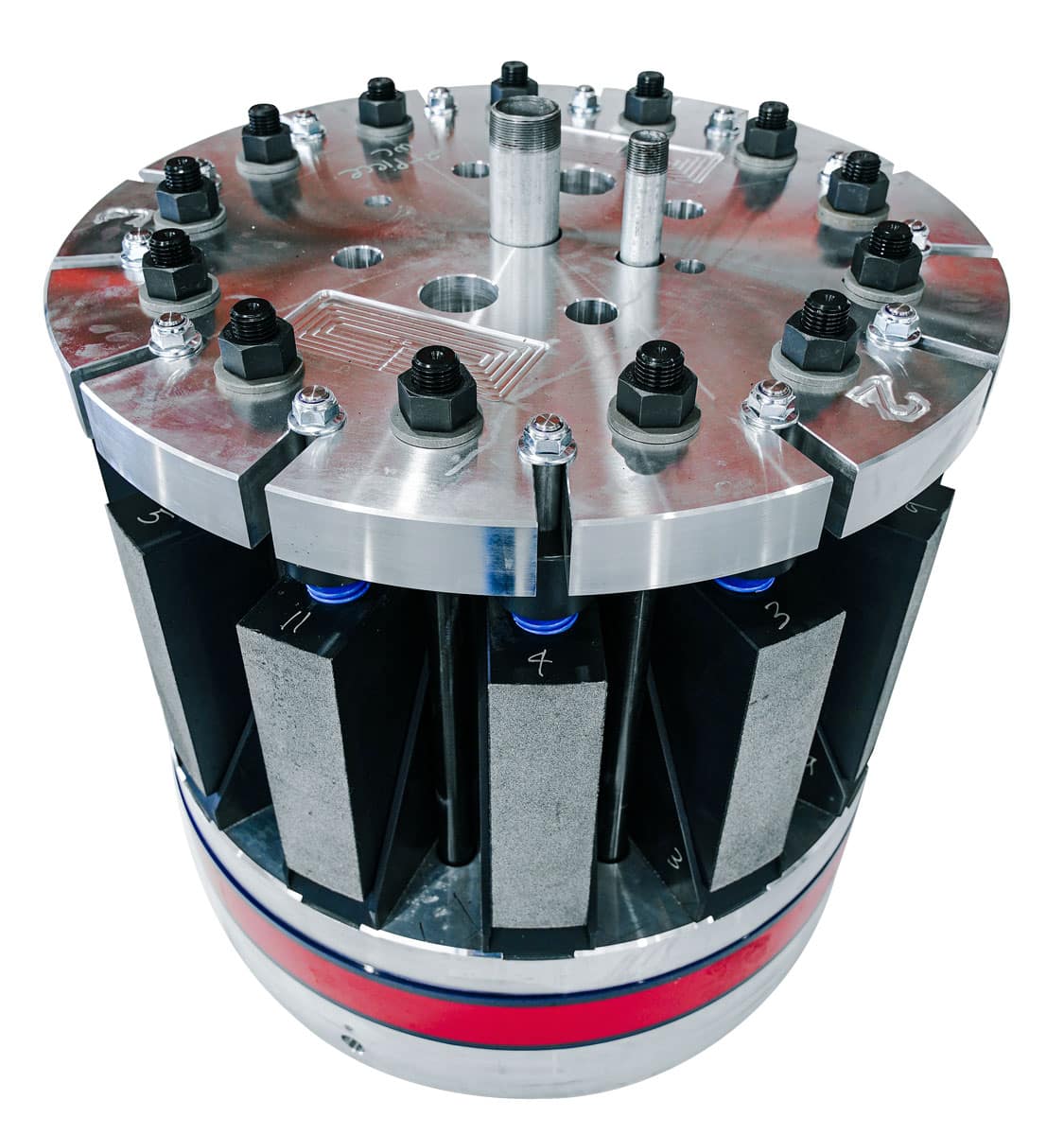

What Is the GripSafe® XL?
Large diameter pipe concentrates enormous force. At just 500 psi, a 36" pipe generates over 500,000 lbs of force on its end, and a 48" pipe exceeds 900,000 lbs. That has traditionally meant welded end caps.

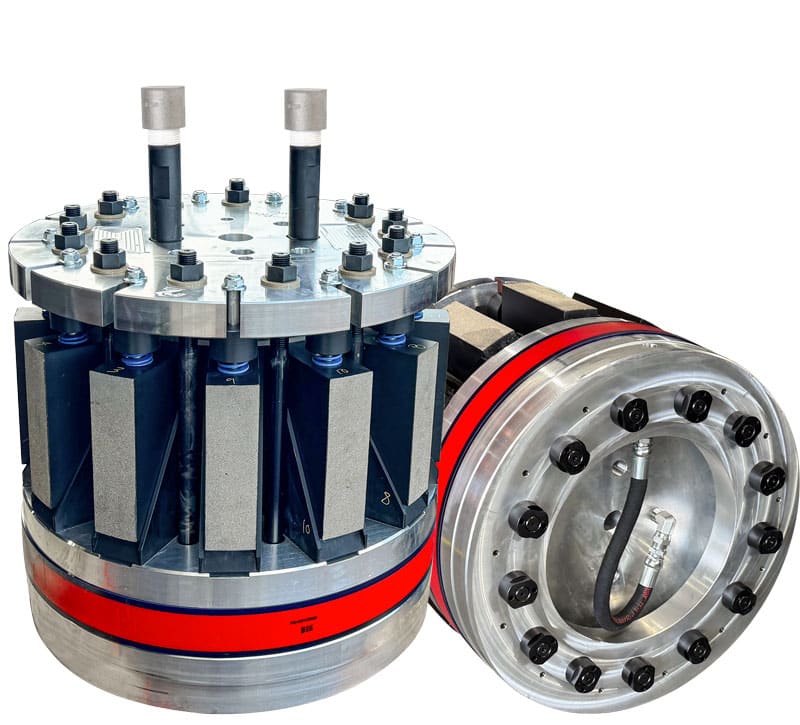

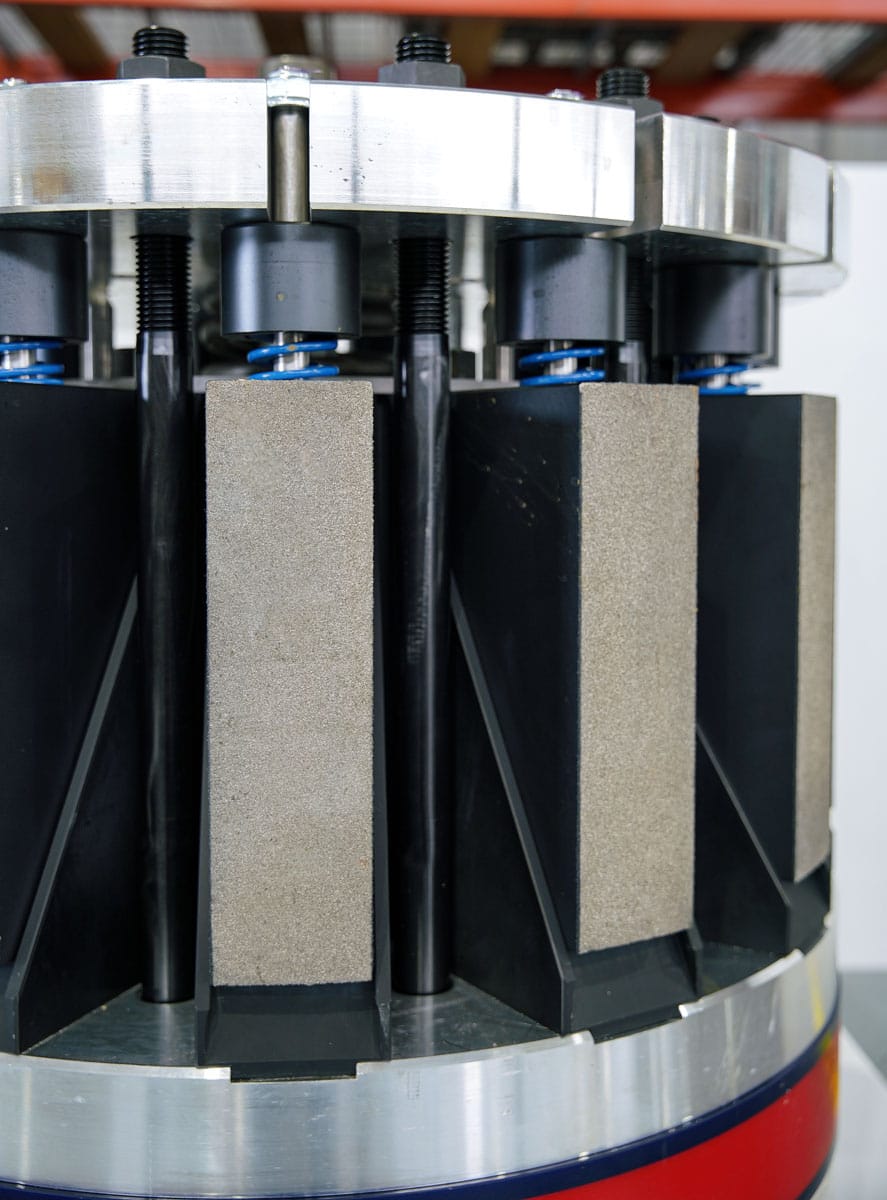

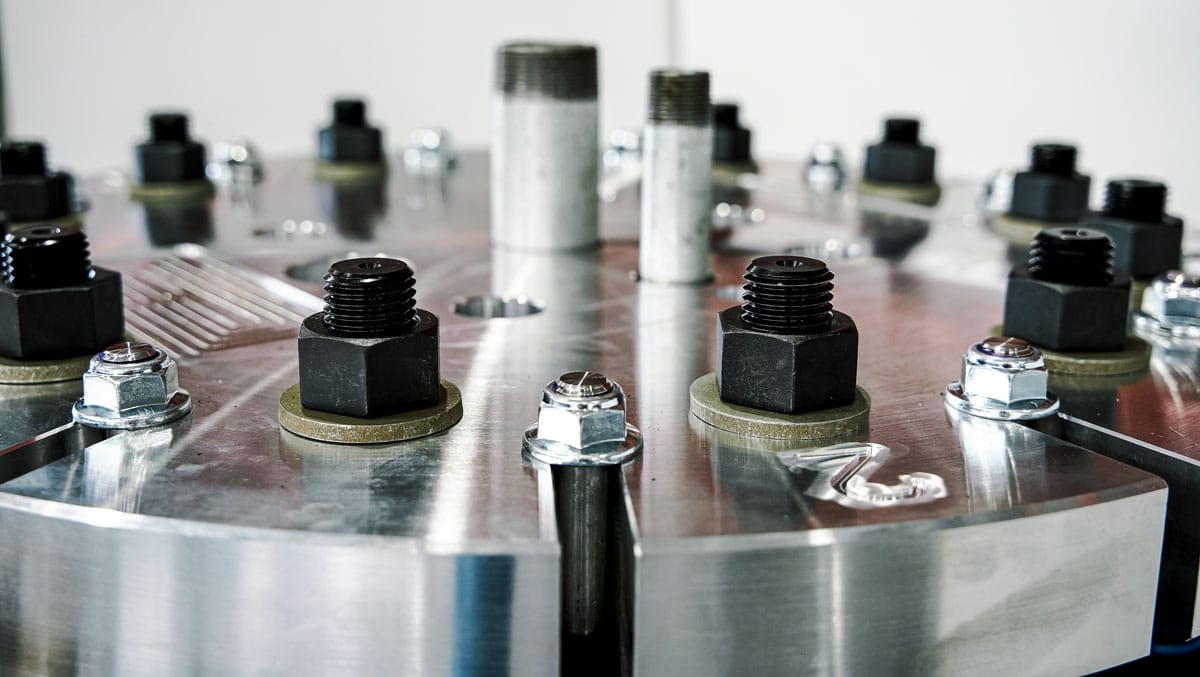

The GripSafe® XL isolation and test plug is built to hold pressure up to the pipe’s yield point. Its patented wedges spread the force across the pipe wall and grip harder as pressure rises, while Tri-Ply® seals and Gritlock® wedges protect the pipe.
Testing 36" and smaller? See the GSST ORB.

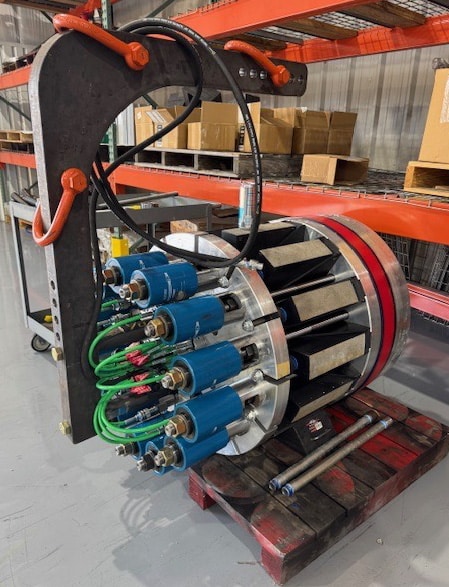

Test Only the Section You Need
Pressurizing an entire large bore system stores a huge amount of energy, and a failure at a welded cap, blind flange, or temporary test head releases it all at once. GripSafe® XL isolates just the section under test.
Where the GripSafe® XL Is Used
Key Features
GripSafe® XL vs. Welded End Caps
GripSafe® XL Specifications
All dimensions in inches. Torque range 250 to 600 ft-lbs, compression hex nut socket 1-7/8", fill port 2" MNPT, back pressure vent 1" MNPT, overall length 38.50", energized body length 31.63" on every size.
| NPS | Wall Thickness | Part Number | Tool Dia. | Pipe ID Range* | Approx. Wt. (lbs) | Back Pressure Rating |
|---|---|---|---|---|---|---|
| 36" | .375 – .750 | GSSTXL-I-S-3600-0750WT | 34.125 | 34.5 – 35.25 | 3,250 | 3,000 psi |
| .875 – 1.250 | GSSTXL-I-S-3600-1250WT | 33.125 | 33.5 – 34.25 | 3,150 | ||
| 1.375 – 1.750 | GSSTXL-I-S-3600-1750WT | 32.125 | 32.5 – 33.25 | 2,800 | ||
| 1.875 – 2.250 | GSSTXL-I-S-3600-2250WT | 31.125 | 31.5 – 32.25 | 2,700 | ||
| 42" | .375 – .750 | GSSTXL-I-S-4200-0750WT | 40.125 | 40.5 – 41.25 | 4,400 | 2,500 psi |
| .875 – 1.250 | GSSTXL-I-S-4200-1250WT | 39.125 | 39.5 – 40.25 | 4,300 | ||
| 1.375 – 1.750 | GSSTXL-I-S-4200-1750WT | 38.125 | 38.5 – 39.25 | 3,950 | ||
| 1.875 – 2.250 | GSSTXL-I-S-4200-2250WT | 37.125 | 37.5 – 38.25 | 3,850 | ||
| 48" | .375 – .750 | GSSTXL-I-S-4800-0750WT | 46.125 | 46.5 – 47.25 | 5,450 | 2,000 psi |
| .875 – 1.250 | GSSTXL-I-S-4800-1250WT | 45.125 | 45.5 – 46.25 | 5,350 | ||
| 1.375 – 1.750 | GSSTXL-I-S-4800-1750WT | 44.125 | 44.5 – 45.25 | 5,200 | ||
| 1.875 – 2.250 | GSSTXL-I-S-4800-2250WT | 43.125 | 43.5 – 44.25 | 5,000 |
* Larger sizes and custom configurations available on request. A PRD is strongly recommended for all Schedule 10/10S and thinner walled pipe. Never exceed the maximum rated pressure of the lowest rated component in the system. Data is subject to change; download the spec sheet (PDF) for the latest release.
