Rod Out Tools Bleeder Cleaners
Clear clogged bleed, drain, vent, and instrument tap valves during normal plant operations while the product stays fully contained. Stainless steel body, rated to 1,000°F and 1,000 psig, and built to any depth, angle, coupling, or bit size.
Four Shaft Types, Two Bit Types
Specs Lasered on BodyGet a Quote or Order
Send us these details and we'll respond the same business day.
- Shaft type (Straight, 90°, 135°, Flexible)
- Shaft length (14" standard)
- Drill bit type and size
- Coupling size
- Quantity and date needed
| Specification | Details |
|---|---|
| Shaft Types | Straight • 90° • 135° • Flexible |
| Shaft Length | 14" standard (longer on request) |
| Bit Types | Everlast • Twist |
| Common Bit Sizes | 1/4" • 5/16" • 3/8" • 7/16" • 1/2" • 3/4" (custom sizes available) |
| Common Coupling Sizes | 1/2" • 3/4" • 1" • 1-1/4" • 1-1/2" • 1-3/4" • 2" (custom sizes available) |
| Rating | Up to 1,000°F and 1,000 psig (per the operating manual) |
| Body | Stainless steel |
| Cable | Bidirectional (standard on 90° and 135°, optional on straight) |
| Safety Stop | Prevents shaft ejection if the bit breaks |
| Country of Origin | USA |

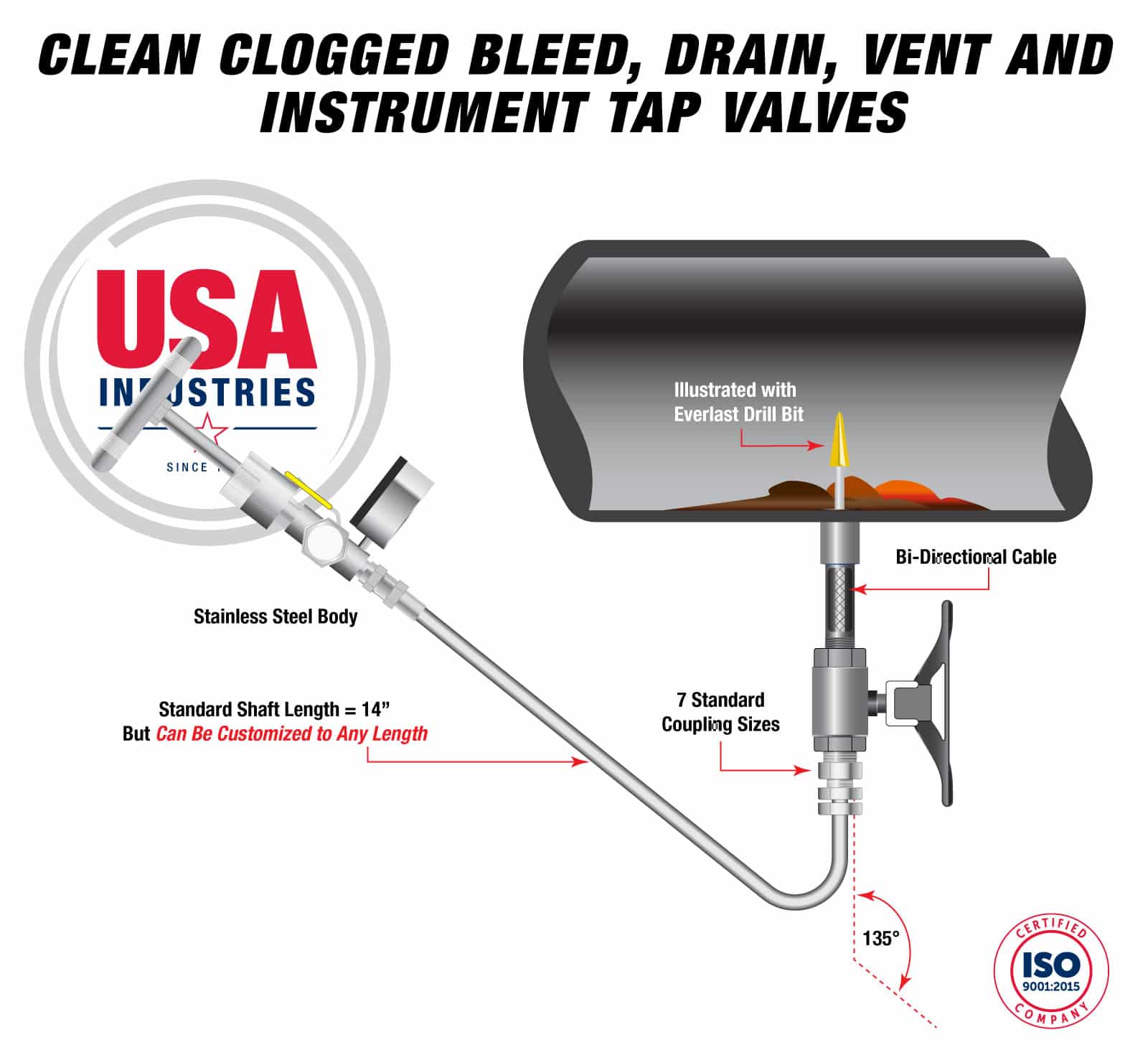

What Is a Rod Out Tool?
A rod out tool threads onto a clogged valve and drives a drill bit through the blockage with a hand-turned shaft, all inside a sealed body. Personnel stay protected from process media, pressure, and hazardous vapors, so taps can be cleared during normal operations without a release.
Also known as:
How to Use It

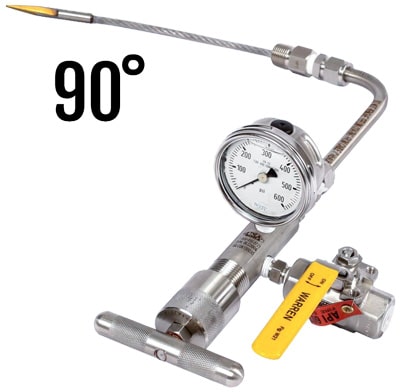

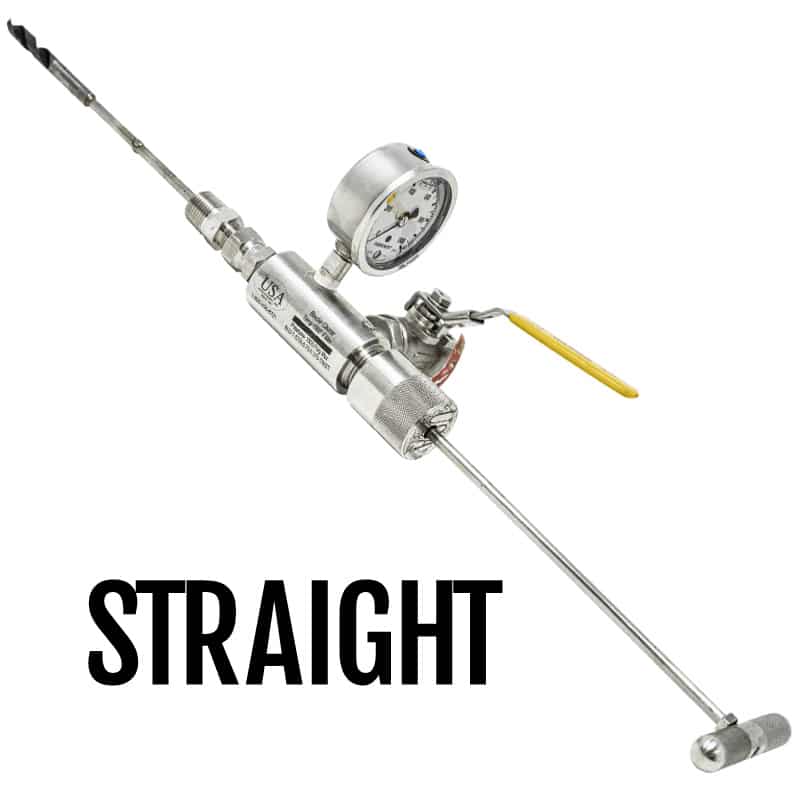

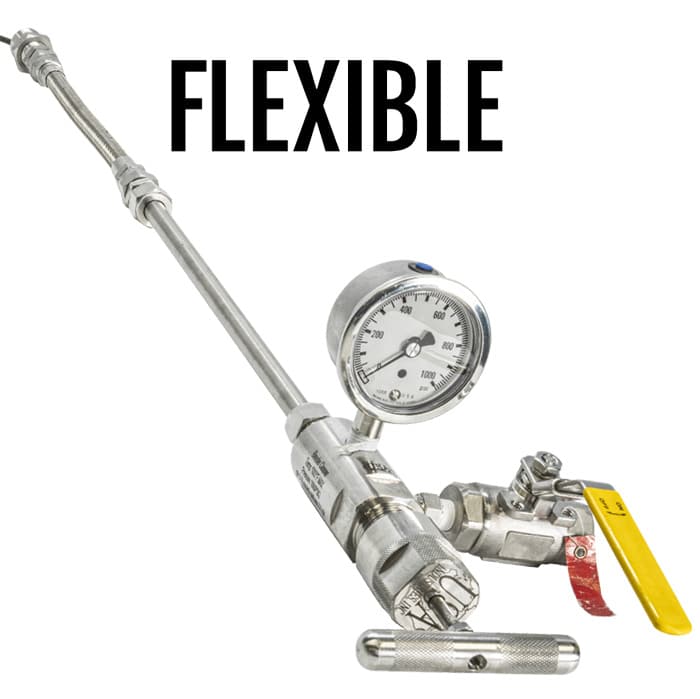

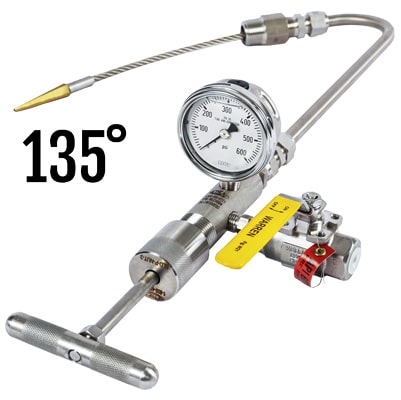

Four Shaft Types

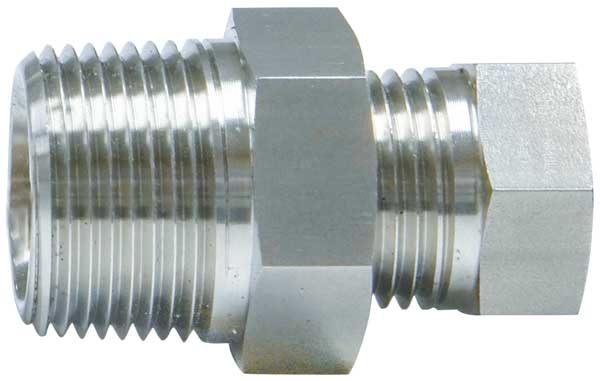

Bits & Couplings
Safety Features
Why USA Industries Rod Out Tools
We build every bleeder cleaner in-house to your exact specs: any depth, angle, coupling, or bit size. Same-day local shipping and delivery in Texas and Louisiana, with 24/7/365 support from S. Houston TX, Corpus Christi TX, Prairieville LA, and Broken Arrow OK.
Rod Out Tool FAQ
How do I use the rod out tool to clean my valves?
Thread the tool onto the valve, then turn the handle to the right continuously to safely clear clogged bleed, drain, vent, and instrument tap valves. See the steps above, and follow the operating manual.
Can I use an impact on the handle to work faster?
No. Turn the handle by hand only. An impact can damage the bleeder cleaner or the tap.

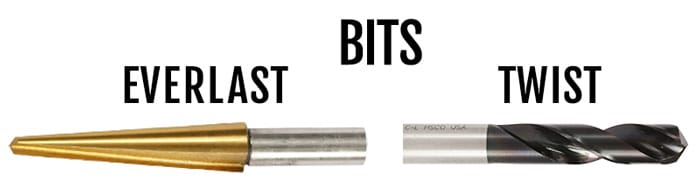

What bits are available?
Everlast and twist drill bits. Common twist sizes are 1/4", 5/16", 3/8", 7/16", 1/2", and 3/4", and custom sizes are available.
Are the bit tips replaceable?
No. Bits are soldered in place permanently.
Can I get a bidirectional cable?
Yes. It's standard on 90° and 135° shafts and available on request for straight shafts.
Can you repair my existing rod out tools?
Yes. Send us your tools for inspection, and we'll evaluate and repair them as needed.
What temperature and pressure are they rated for?
Up to 1,000°F and 1,000 psig when used according to the operating manual.
