Pneumatic Pipe Isolation

Medium Pressure Inflatable Pipe Plug

A fast, flexible way to temporarily block a line for maintenance, repairs, and testing. Snake it into large or hard-to-reach pipe, inflate it with a standard air source, and get a tight seal with no special tools, permanent changes, or shutdowns.

2"‑96"Pipe Sizes

200°FMax Temp*

ReusableInflate, Deflate, Repeat

Rentor Buy

Get A Quick Quote Find Your Size

*Heat-resistant versions.

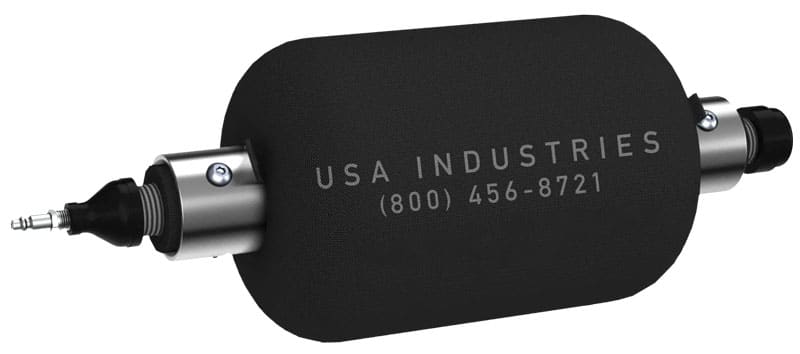

USA Industries medium pressure inflatable isolation plug

Medium Pressure Inflatable Plug‹›

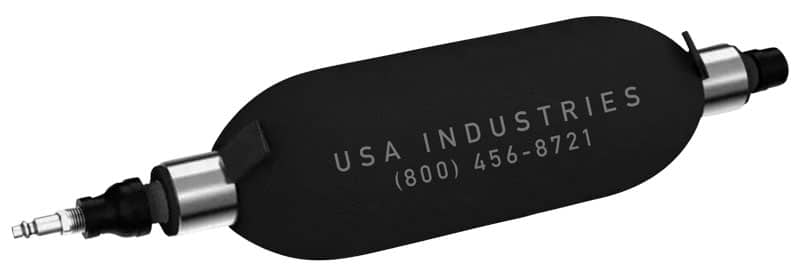

USA Industries small size medium pressure inflatable isolation plug

Small Size Inflatable Plug‹›

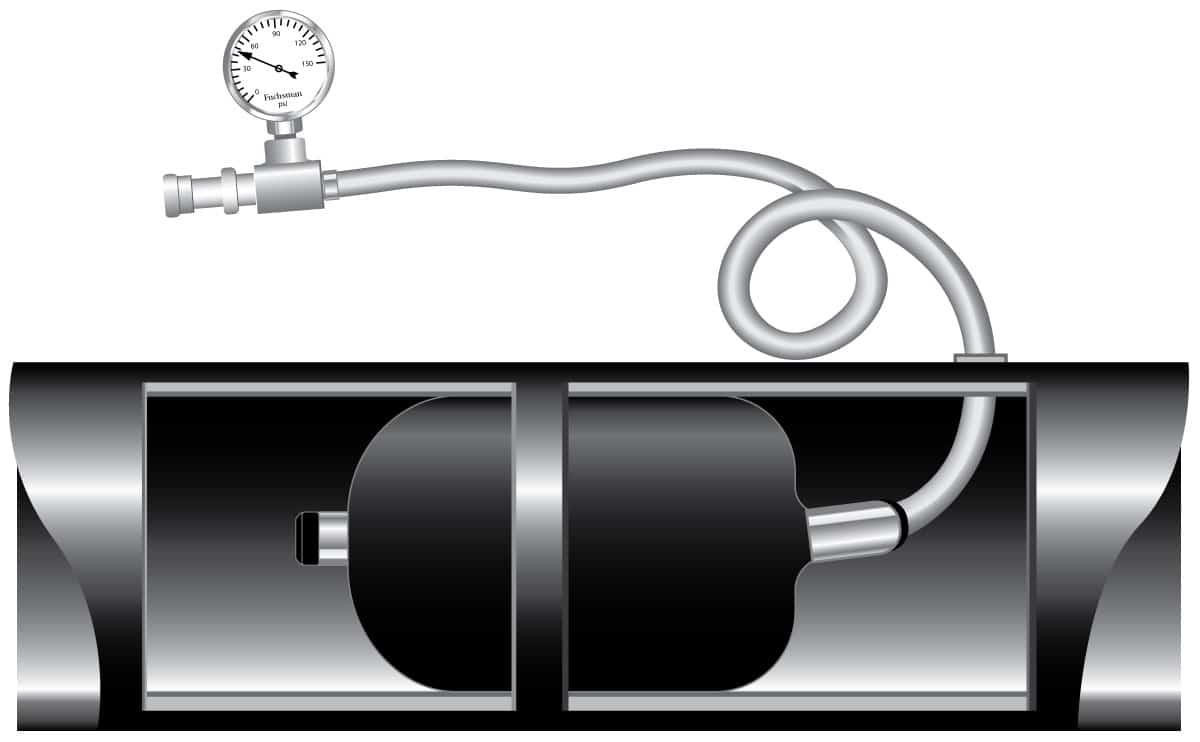

Application Illustration‹›

Medium pressure inflatable balloon isolation plug application illustration

Get a Quote or Order

Send us these details and we'll respond the same business day.

Pipe size (ID)
Port type: 1/4" QD, 1/2" QD, or NPT
Fill hose length, if longer than 2 ft.
Quantity needed
Rental or purchase
Date needed

Get A Quick Quote Call (800) 456-8721

Technical Data Sheet

Inflatable Pipe Plug

DS-IPP-MP-001 Rev. Current

Specification	Details
Pipe Sizes	2" – 96" (see spec chart)
Outer Shell	Ballistic nylon reinforced nitrile
Inner Bladder	High-quality polyurethane
Chemical Resistance	Hydrocarbon resistant
Durability	Puncture • Tear resistant
Temperature	Up to 200°F (heat-resistant versions)
Ports	1/4" QD • 1/2" QD • NPT
Included	Pressure gauge • 2 ft. inflation hose (longer on request)
Expansion Range	Wide ID range per plug (partial or full inflation)
Back Pressure	A few psi only (not recommended for back pressure)
Use Profile	Short-term, temporary isolation
Availability	Rent • Purchase

Why Inflatable Plugs

Block the Line. Skip the Shutdown.

Pipe BlockageStop liquid or gas flow without permanent changes or a system shutdown.

VersatilitySewer, stormwater, industrial, and plumbing lines. Snakes into large or hard-to-reach pipe.

Easy InstallA simple inflation valve and standard air source. No specialized tools.

Tight SealPrevents leaks, spills, and contamination while you work.

Cost-EffectiveCosts less than mechanical plugs or hot taps, and it's reusable.

SafetyDurable construction that deflates and removes easily.

Know the LimitsNever inflate beyond the maximum pressure listed for each plug. Inflatable plugs hold only a few psi of back pressure. We don't recommend them for back pressure unless the fluid is water and a failure would have negligible impact. Never stand in front of a plugged line.

Need to Hold Back Pressure?

Step Up to GripSafe®

For isolation or testing against real line pressure, use a mechanical isolation and test plug.

Up to 10,000 psiGripSafe® ST DBBDouble block & bleed › Isolation & TestGripSafe® ST ORBView plug › Isolation & TestGripSafe® ST IIBView plug › Mechanical IsolationHeavy Duty Industrial Isolation PlugView plug ›

Spec Chart

Medium Pressure Pneumatic Plug Specifications

Filter by port type to find your plug. Do not over-inflate beyond the pressure listed for each plug.

49 specs

Medium-Duty Inflatable Balloon Plug Specifications
Max Pipe Diameter	Deflated Diameter click to highlight	Length (Deflated) click to highlight	Inflation Max Press. click to highlight	Pipeline Pressure Max click to highlight	Port / Inflation click to highlight

Available to Rent or Buy

Save Money. Rent.

Lower upfront cost and no long-term storage. Rent the plugs you need for the job.

Get A Quick Quote See Rentals

Common Questions

Inflatable Plug FAQ

Can I get an inflatable plug with vent-through capability?

Not usually on this style, but we can supply a different style of plug that vents through. Ask our team.

What is the largest size you provide?

Up to 96". For larger lines, we can recommend other isolation solutions.

Can I get a longer fill hose?

Yes. Each plug comes with a 2 ft. hose. Tell us the length you need.

What is the heat rating?

Heat-resistant versions are rated up to 200°F.

Will these hold back pressure?

Only a few psi. We don't recommend them for back pressure unless the fluid is water and a failure would have negligible impact. For real back pressure, use a GripSafe® ST plug.

Is the plug repairable?

Only the inner fill valve stem can be repaired.
