Paddle Spacer Blinds for Piping Systems
When the paddle blind comes out, the paddle spacer goes in, holding flange spacing so the line can return to service. As a custom shop, we build spacers to match your paddle blinds in any size, rating, thickness, alloy, or face.
Get a Quote or Order
Send us these details and we'll respond the same business day.
- Flange rating (150# to 2500#)
- Size (1/2" to 96")
- Thickness (Isolation, Hydro, Custom)
- Face type and finish
- Material
- Quantity and date needed
| Specification | Details |
|---|---|
| Sizes | 1/2" – 96" |
| Thickness Options | Isolation • Hydro • Custom |
| Rating Classes | 150# • 300# • 600# • 900# • 1500# • 2500# |
| Stocked Alloys | 516-Gr70 CS • 304/316 SS (Any Available Alloy) |
| Handle | "O" Cut (identifies the in-line spacer) |
| Materials Origin | USA |
| Face Options | Flat • Raised • RTJ Male • RTJ Female |
| Gasket Types | Oval • Octagonal |
| Finish Options | Serrated (125/250 RMS) • Mill |
| Coating Options | Various |
| Availability | Rent • Purchase |
What Is a Paddle Spacer Blind?
A paddle spacer is an open ring with a handle, cut to the same OD and thickness as its matching paddle blind. The paddle blind isolates the line. When the blind is pulled, the spacer goes into the same gap, keeping the flange spacing and gasket seating correct so the line can go back in service without moving pipe.
Its rounded "O" cut handle sets it apart from the T or 7 handle on a paddle blind, so crews can tell at a glance which piece is in the line.
Also known as:
What Are Paddle Spacers Used For?
- Returning a line to service: replaces the paddle blind once maintenance, inspection, or testing is done
- Holding flange spacing: fills the gap so flanges don't have to be pulled together, keeping gaskets seated and bolting correct
- Marking an isolation point: the spacer stays in the line, so the blind can go back in the same spot at the next turnaround
Paddle Blind + Spacer vs. Spectacle Blind
A spectacle blind combines a paddle blind and a spacer in one piece. Here's when each makes more sense.
See our Spectacle Blinds and Paddle Blinds pages.

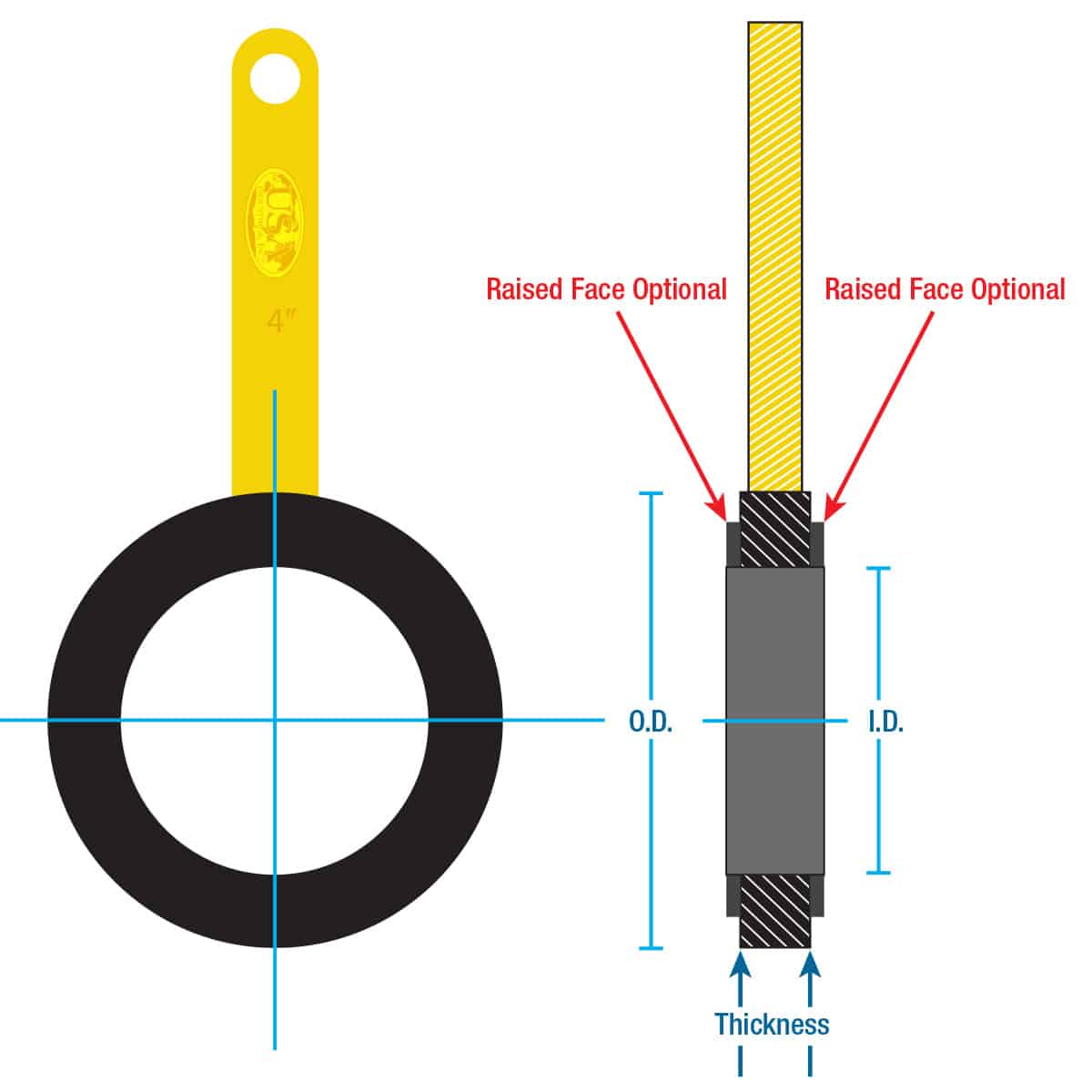

1. Thickness: Match the Blind
A spacer is built to the same thickness as the paddle blind it replaces, so flange spacing doesn't change when you swap them.
Look up standard thicknesses on the Blind Thickness Chart, or call our technical team to confirm.
2. Face, Gasket & Finish
3. Material
Match the spacer to the pipe material and process fluid. All raw materials are PMI verified.

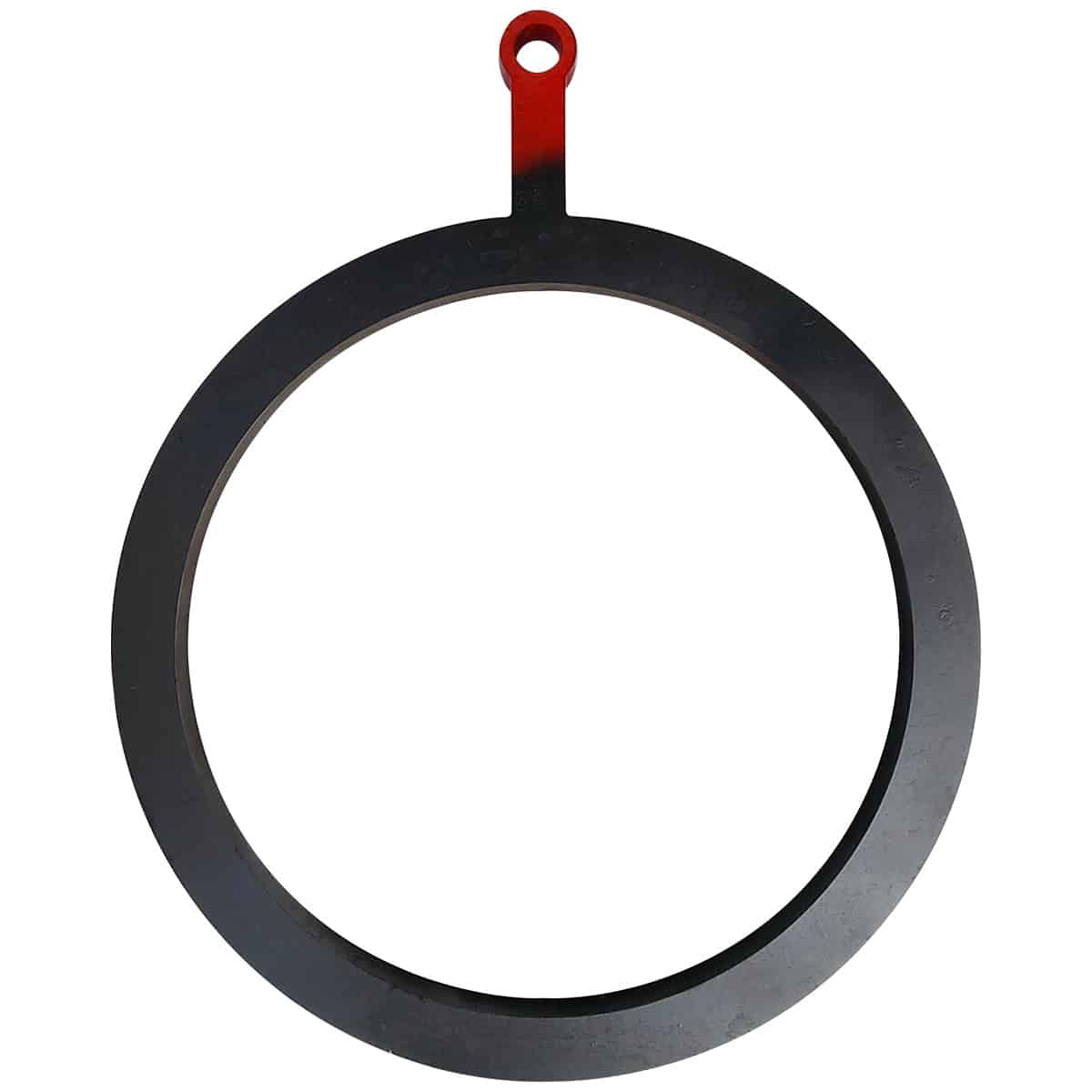

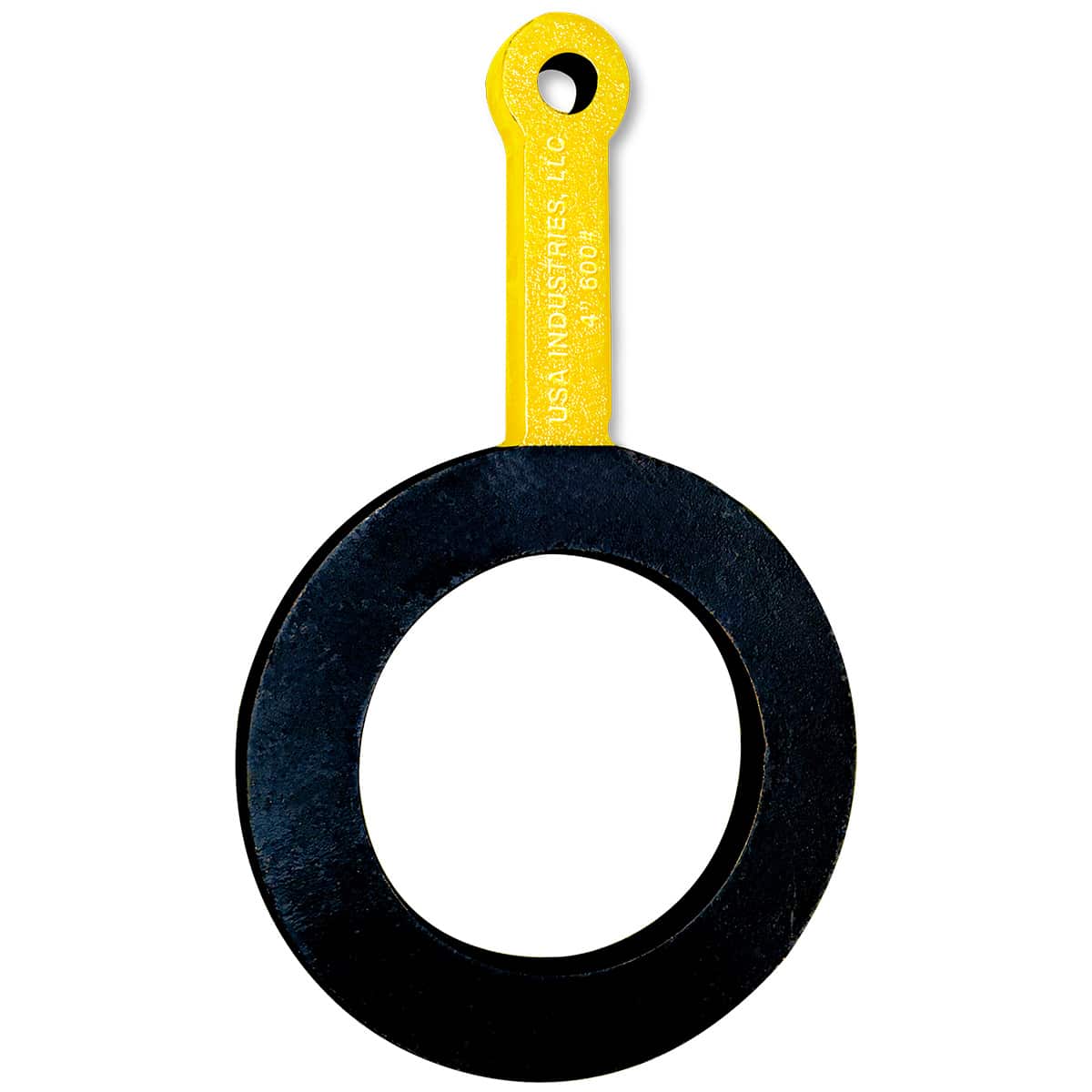

Handles Color-Coded by Class
Carbon steel spacer handles are painted by flange rating.
Why USA Industries Paddle Spacers
We are the actual manufacturer, not a distributor. We've built isolation blinds in-house since 1982, so your spacers match your blinds exactly, with 24/7/365 emergency service from S. Houston TX, Corpus Christi TX, Prairieville LA, and Broken Arrow OK.
Paddle Spacer FAQ
Do I need a spacer if I use a spectacle blind?
No. A spectacle blind's open disc does the spacer's job. Spacers are for lines isolated with a separate paddle blind.
Can you match a spacer to a blind I already have?
Yes. Give us the size, rating, thickness, and face of the existing blind and we'll build the spacer to match.
Can I rent paddle spacers?
Yes. Rental and purchase are both available from every service center. See rentals.
